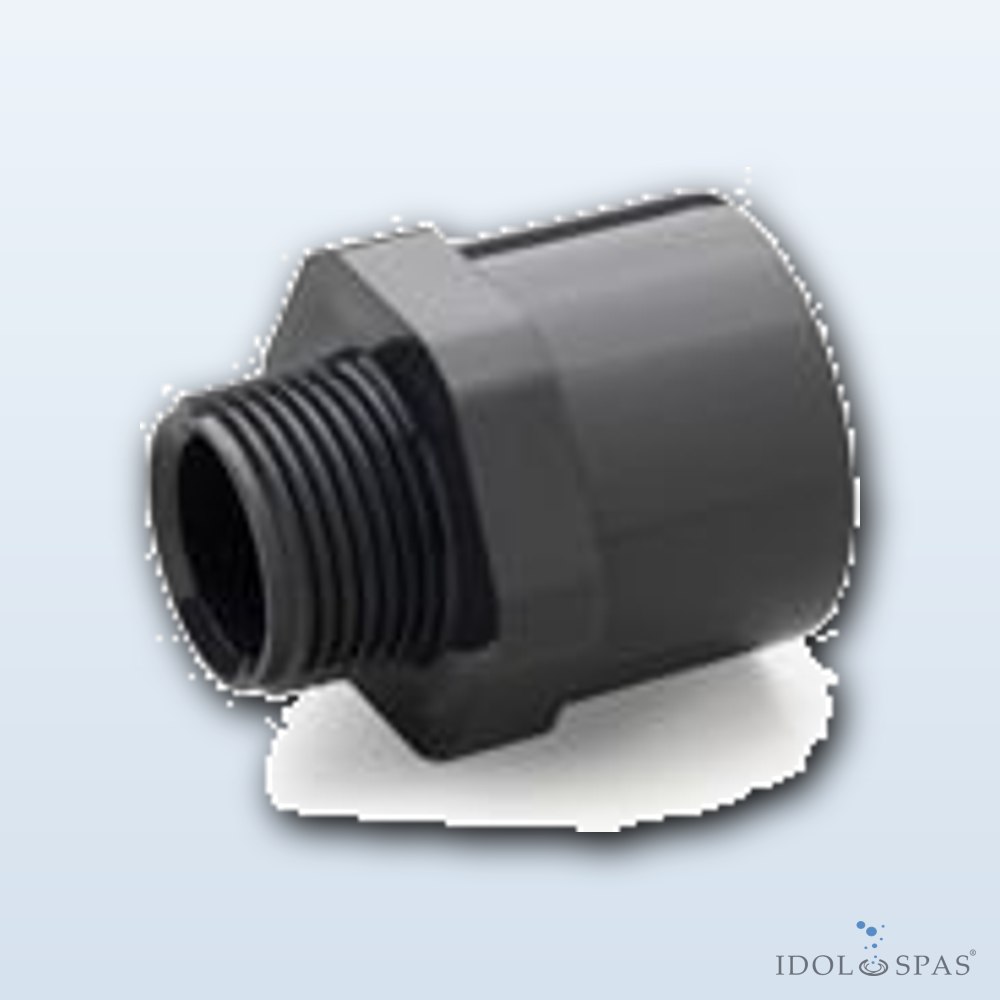

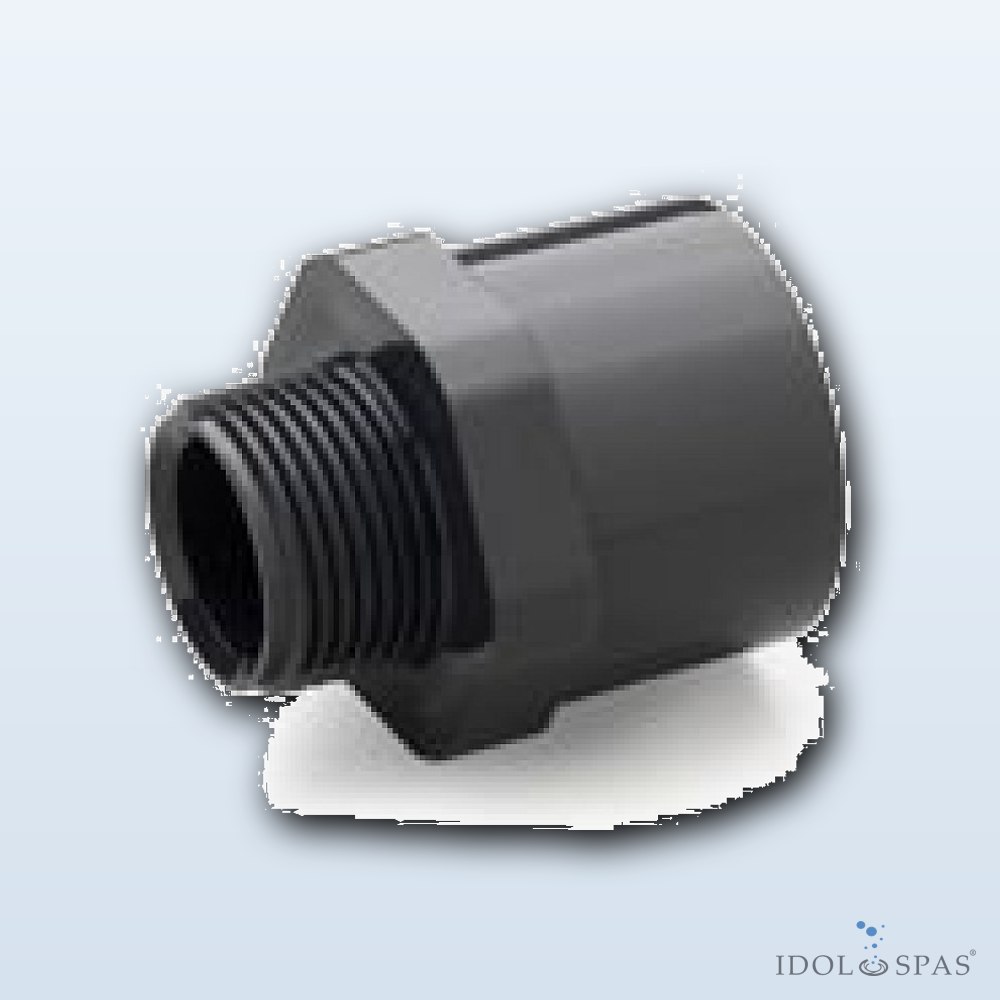

The adapter socket nipple PVC d90/110 × 3 inch allows the connection of pipe with a diameter of 90 or 110 mm to a threaded fitting with a diameter of 3 inches. The part is used especially with filters, industrial pumps and manifolds in professional or public pool operations.
Manufacture from PVC-U ensures resistance to aggressive pool chemistry as well as UV radiation during outdoor installation. The wall thickness corresponds to the PN 16 standard, so the part is also suitable for installations with higher working pressure.
Installation is identical to other adapter nipples – the socket is glued with PVC glue and the thread is sealed with Teflon tape. Temperature range -10 to 60 °C.
