This add-on set allows you to extend an existing solar assembly with an additional pool collector and thus increase the heating efficiency. The collector is made of a specially treated polymer resistant to UV radiation, frost, extreme air pollution, oxidation and pool chemicals. The set includes connection and installation accessories for quick assembly in a single row. The connection is made directly to the circulation circuit (without a heat exchanger), so the heating efficiency is very high.
Installation and efficiency
- Ideal orientation: south-west, with a slope of 15–30° from the horizontal
- The system consists of collectors connected in a row; efficiency increases with the total area
- Recommended minimum area of approx. 60 % of the pool’s water surface (at a depth of 120–150 cm and with suitable covering)
Technical parameters
- Number of collectors: 1 pc
- Collector dimensions: 2.0 m x 1.2 m
- Material: UV-stable polymer
- Test pressure: 2.5 bar, practically without pressure loss

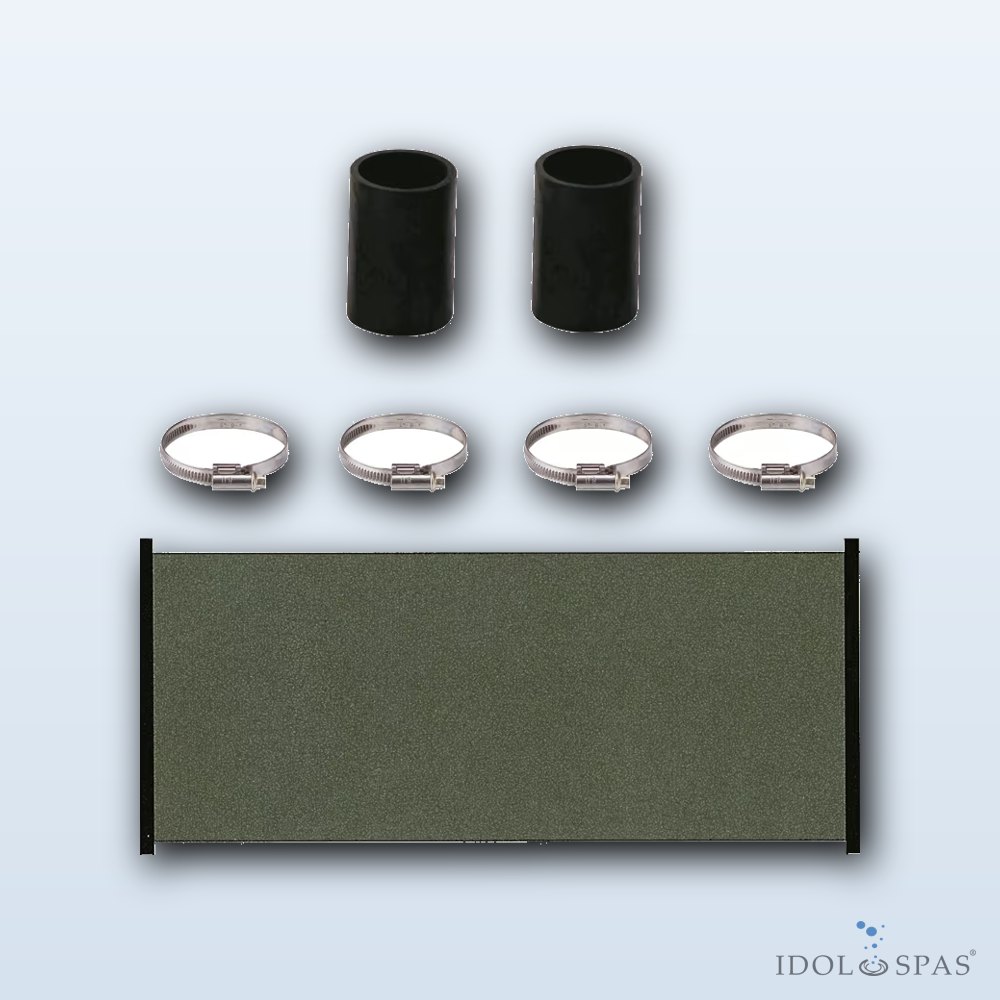

- Installation accessories for connection in a single row included
