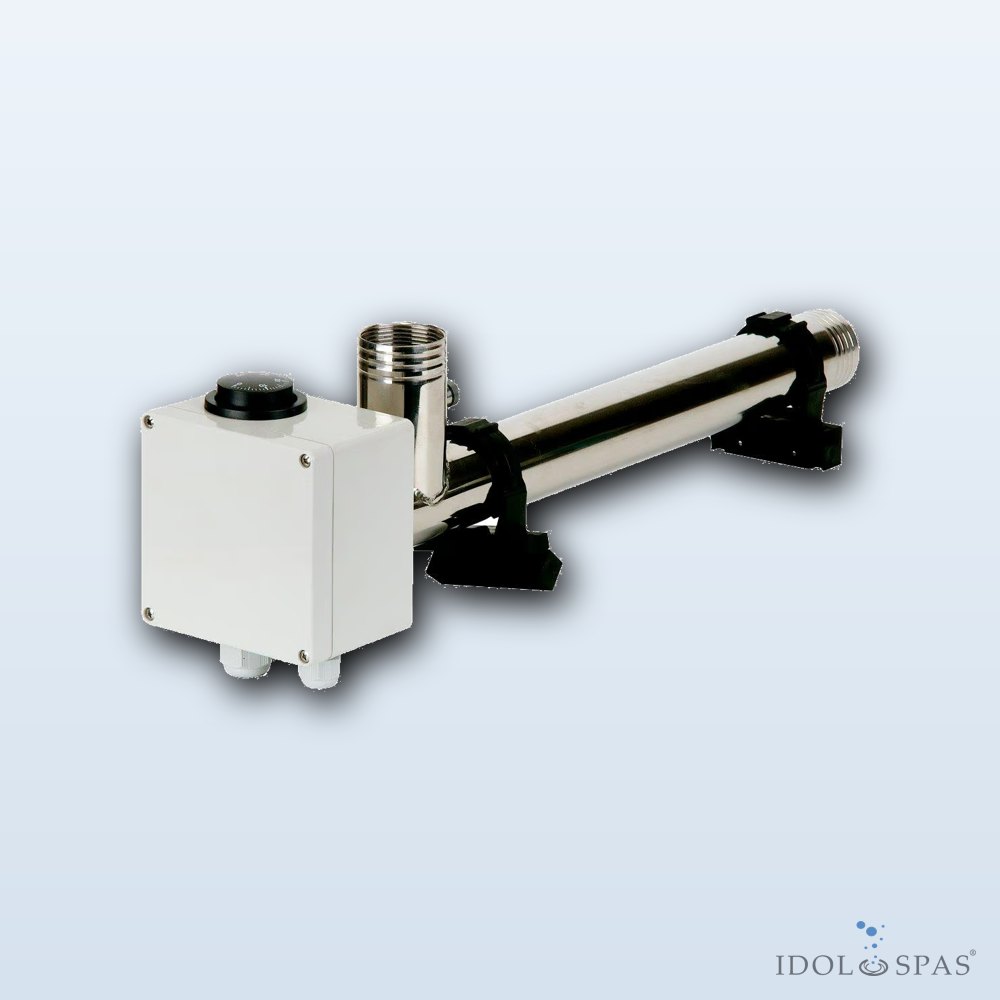

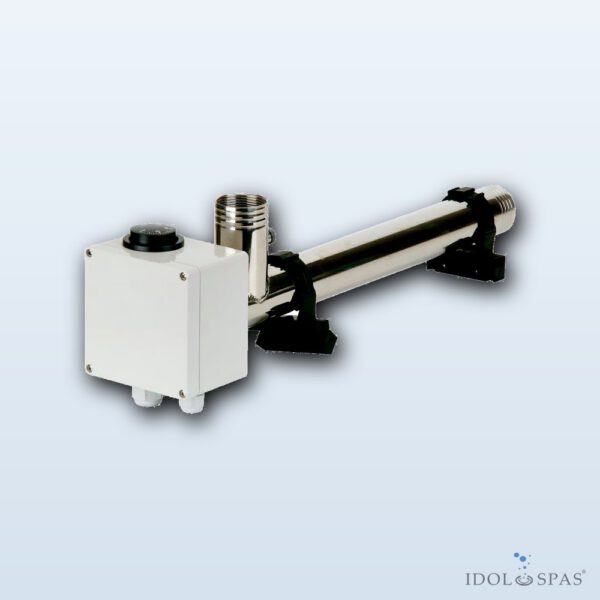

The EOVv air heater is designed to heat air flowing from a blower at outdoor and indoor pools, spas and whirlpool tubs. The air is heated as it passes through the heating element.
Control and protection
- The required temperature is set using an adjustable capillary thermostat with a range of 0–70 °C, located on the device’s box
- An electronic thermostat can be added on request
- The heating element is switched by a contactor, which is not part of the heater – it is supplied separately in the control automation
- The heating is protected by a thermal fuse with a trip value of 75 °C; its tripping indicates a fault
Parameters and package contents
- Power output 1.5 kW, voltage 230 V, connection 1.5″
- EOVv air heater
- 2 plastic brackets for wall mounting
- Wiring diagram
The device must be installed by a qualified or trained technician.
