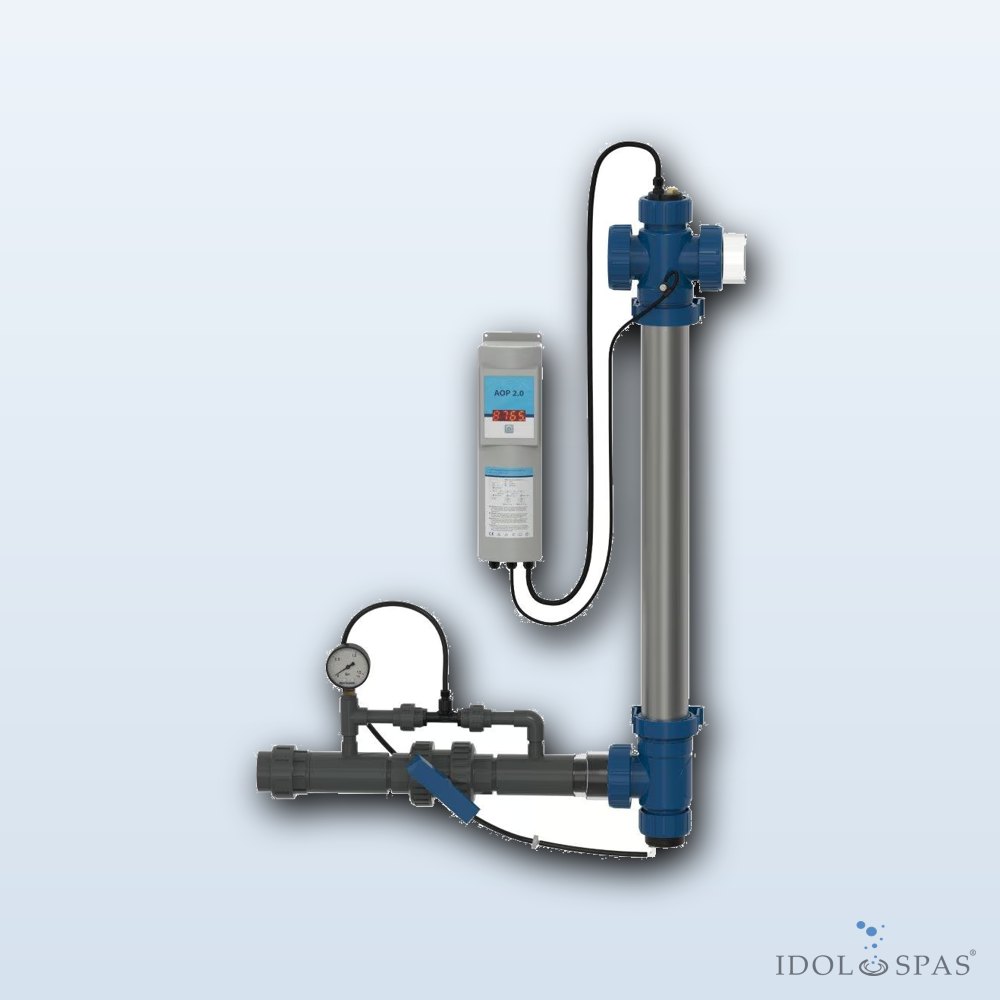

AOP Ozone & UV-C 75W Compact Unit

The AOP Ozone & UV-C 75W compact unit is suitable for private pools. By combining ozone and a low-pressure UV-C lamp, it ensures hygienically clean pool water with minimal need for chlorine disinfection.

Main functions

• Triple disinfection: ozone, OH radicals and UV-C
• Up to 35 % higher UV-C yield thanks to reflection
• 100% efficient and stable operation
• DUPLEX stainless steel housing, also suitable for pools with salt electrolysis water treatment
• Automatic operation monitoring with indication of the need to replace the lamp
• Easy installation and maintenance

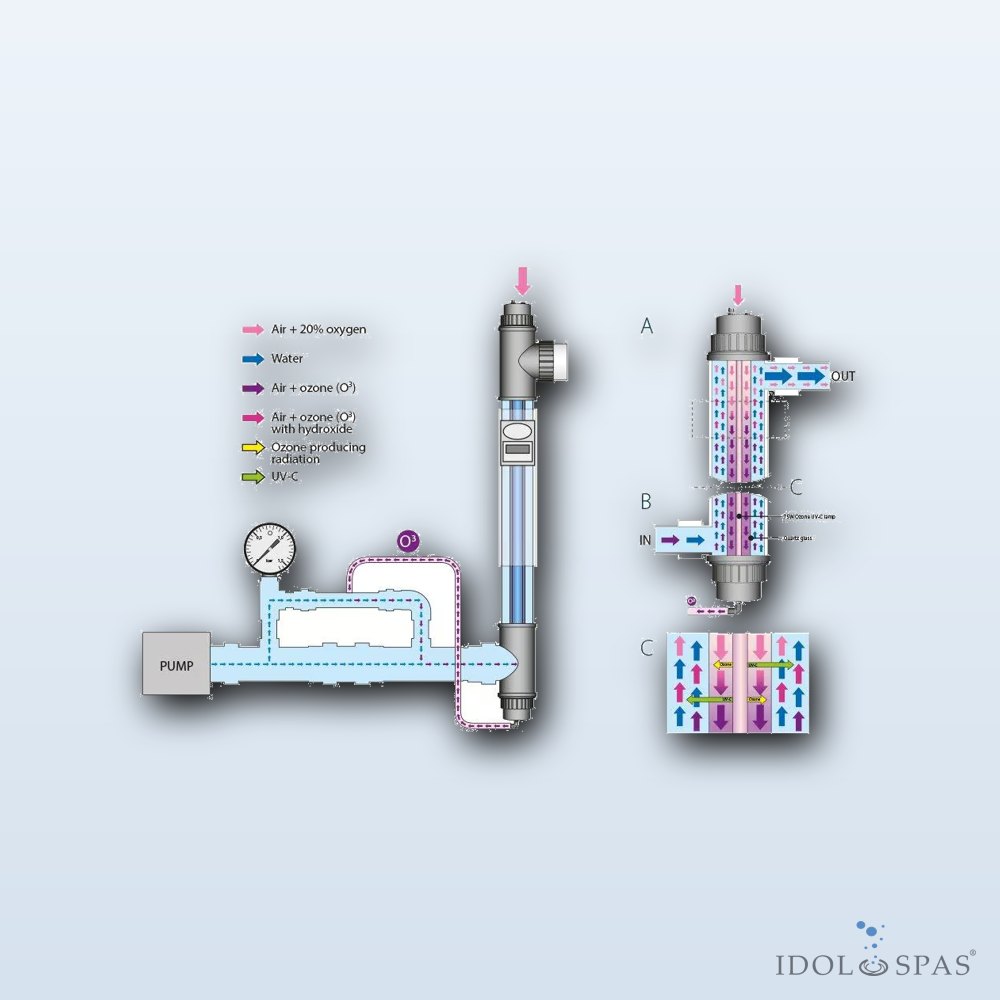

Operating principle

A special UV-C lamp generates radiation at wavelengths of both 254 nm and 185 nm. The 185 nm radiation converts available oxygen into ozone (max. 0.6 g/h), which is mixed with the water through a Venturi tube and ensures disinfection and oxidation. Inside the UV-C housing, all residual ozone is converted by 254 nm radiation into OH radicals (Advanced Oxidation Process) with an even stronger oxidizing capacity than ozone.

The Advanced Oxidation Process (AOP) is among the best available water treatment technologies. OH radicals have a very short lifetime and the entire process takes place inside the reactor, so the treated water is free of OH radicals. AOP reduces organic pollution as well as the by-products of chlorine disinfection (THM, chloramines). The UV-C also destroys residual ozone in the water, so no separate de-ozonation device is needed.

Technical specifications

• Lamp power: 75 W
• Recommended flow rate (30 mJ/cm2): 18 m3/h
• Maximum flow rate: 23 m3/h
• Maximum pressure: 2 bar
• Unit diameter: 70 mm
• Unit length: 100 cm
• Connection (inlet/outlet): 63 mm / 50 mm / 1½”
• Body material: DUPLEX stainless steel
• Power supply: 230 V AC, 50/60 Hz
• Maximum current: 0.57 A
• Lamp type: VGE T5 75W Ozone
• Lamp service life: 4,500 h (ozone) / 9,000 h (UV-C)
• Ozone production: 0.6 g/h
