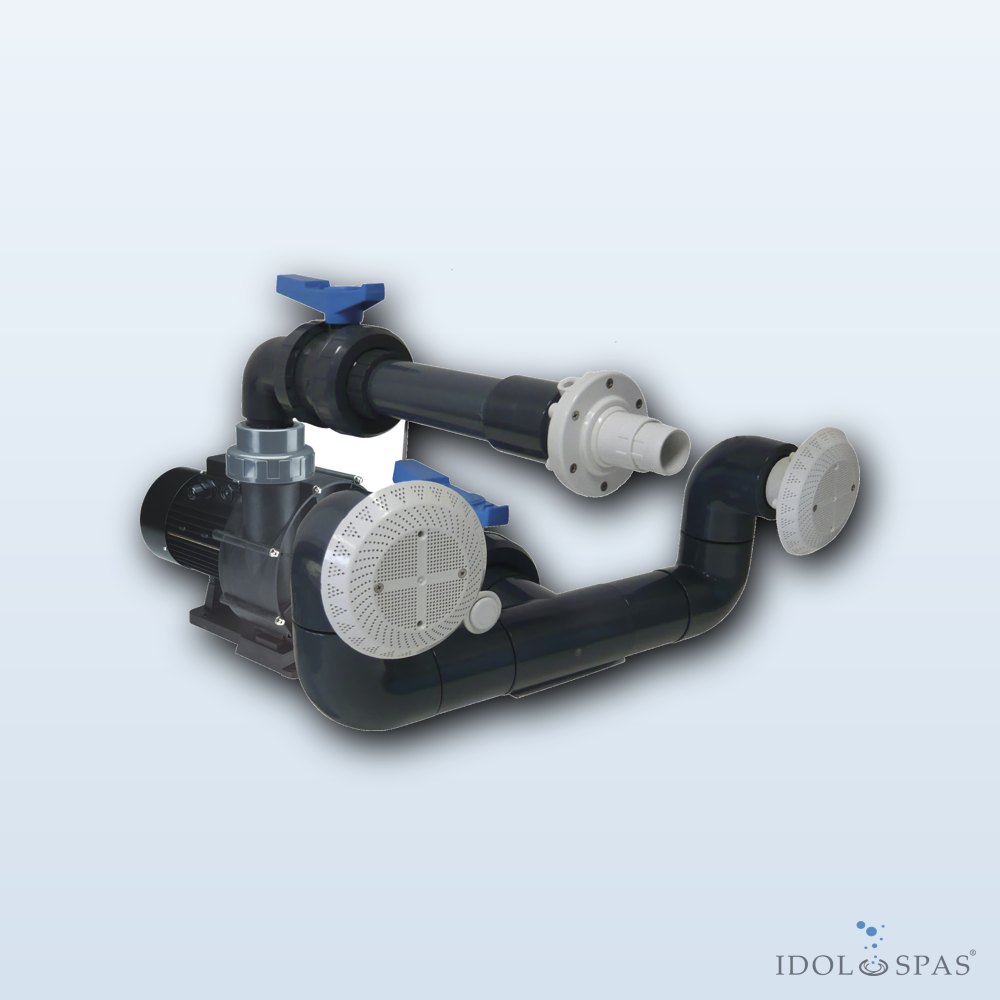

COMPASS Single Jet – Complete Set 66 m³/h, 400 V, 2.2 kW

Complete counter-current unit of the COMPASS series in the Single Jet version with a pump delivering a flow rate of 66 m³/h, a 400 V power supply and a power input of 2.2 kW. The Compass series is supplied with two motor sizes – 66 m³/h and 84 m³/h, so it can be selected to suit any type and size of pool.

Installation recommendations

• Install the pump as close to the pool as possible for maximum performance and to minimise friction losses. It is not recommended to place it more than 15 m from the pool.
• Adhere to the original diameters of the PVC accessories supplied with the unit.
• The NEW BCC series pumps used in the Compass Jet unit are not self-priming – they must be installed below the water level.
• The plant room must be sufficiently ventilated, if necessary with a fan, to cool the pump and prevent the condensation of water vapour.
