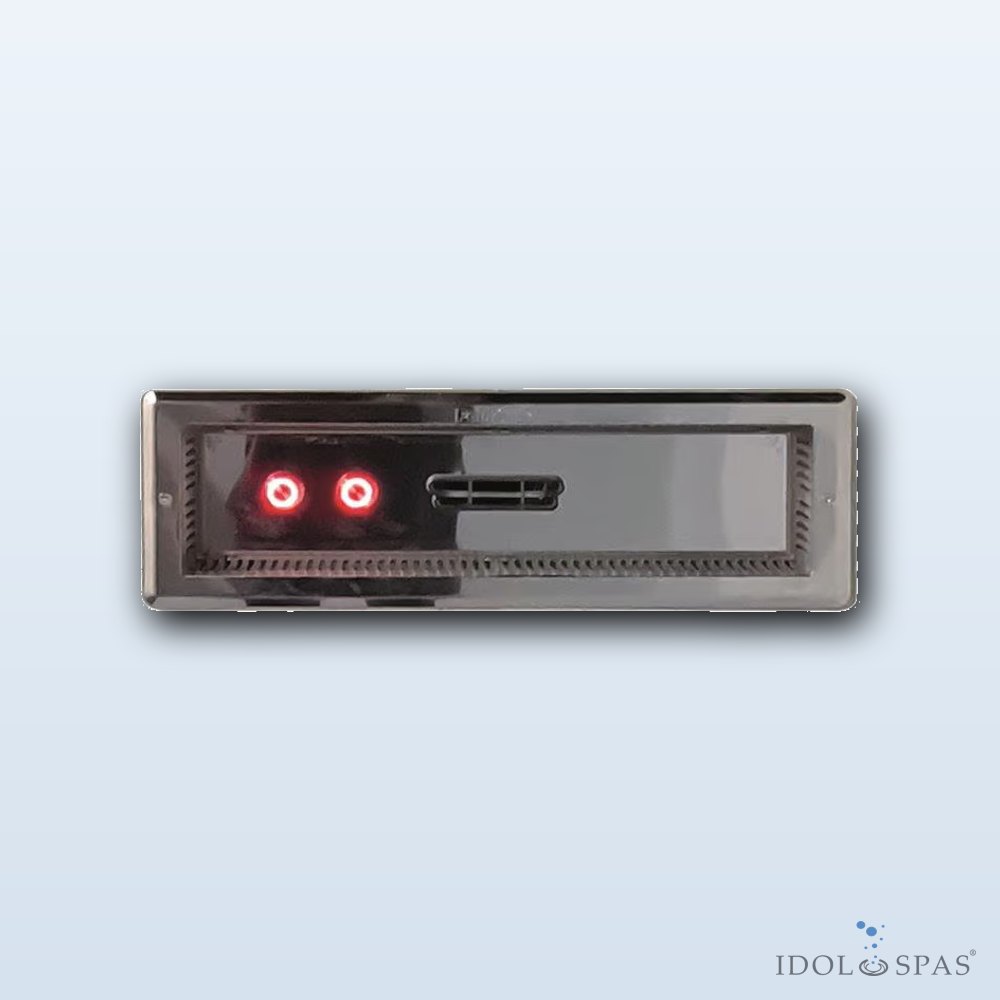

Front panel of the JET SWIM Athlete counter-current made of AISI 316L stainless steel with two oval jets and two piezoelectric buttons for controlling the pump power via a frequency inverter.
This front panel with two piezoelectric buttons can only be used if the pool technology is equipped with the intelligent VArio system and the DIN PUMPS module. Without them, the buttons cannot control the pump speed, because the piezoelectric buttons cannot be connected directly to the frequency inverter. The buttons are connected to the VArio DIN PUMPS module, so there is no need to install the PRO PIEZO electronics.
Features
- Material: AISI 316L stainless steel
- Two oval jets
- 2× piezoelectric button
Selecting the frequency inverter according to the pump
- JET SWIM Athlete 66 m³/h – BRAVUS 300M pump, 230 V – no inverter is available for this output
- JET SWIM Athlete 66 m³/h – BRAVUS 300T pump, 400 V – OPTIDRIVE E3 4 kW (input 3× 400 V / output 3× 400 V)
- JET SWIM Athlete 74 m³/h – BRAVUS 400T pump, 400 V – OPTIDRIVE E3 4 kW (input 3× 400 V / output 3× 400 V)
- JET SWIM Athlete 86 m³/h – BRAVUS 550T pump, 400 V – OPTIDRIVE E3 5.5 kW (input 3× 400 V / output 3× 400 V)
