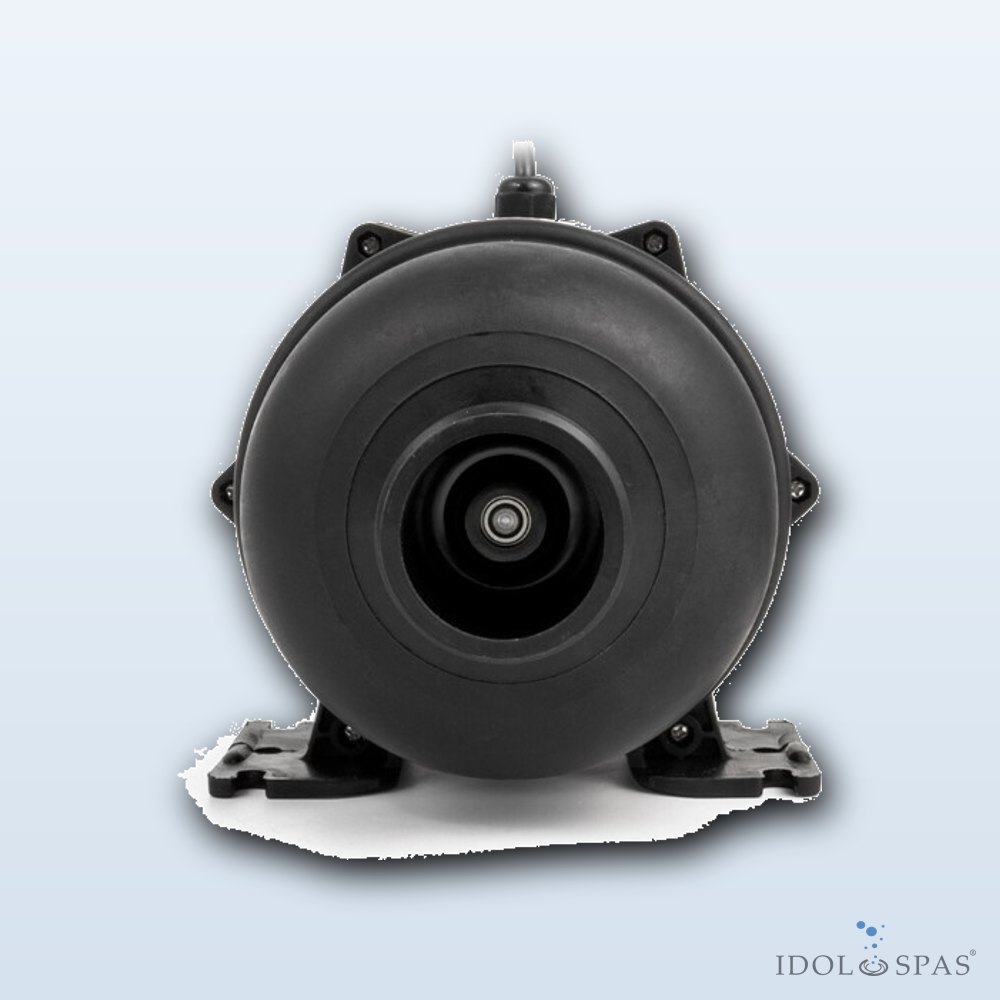

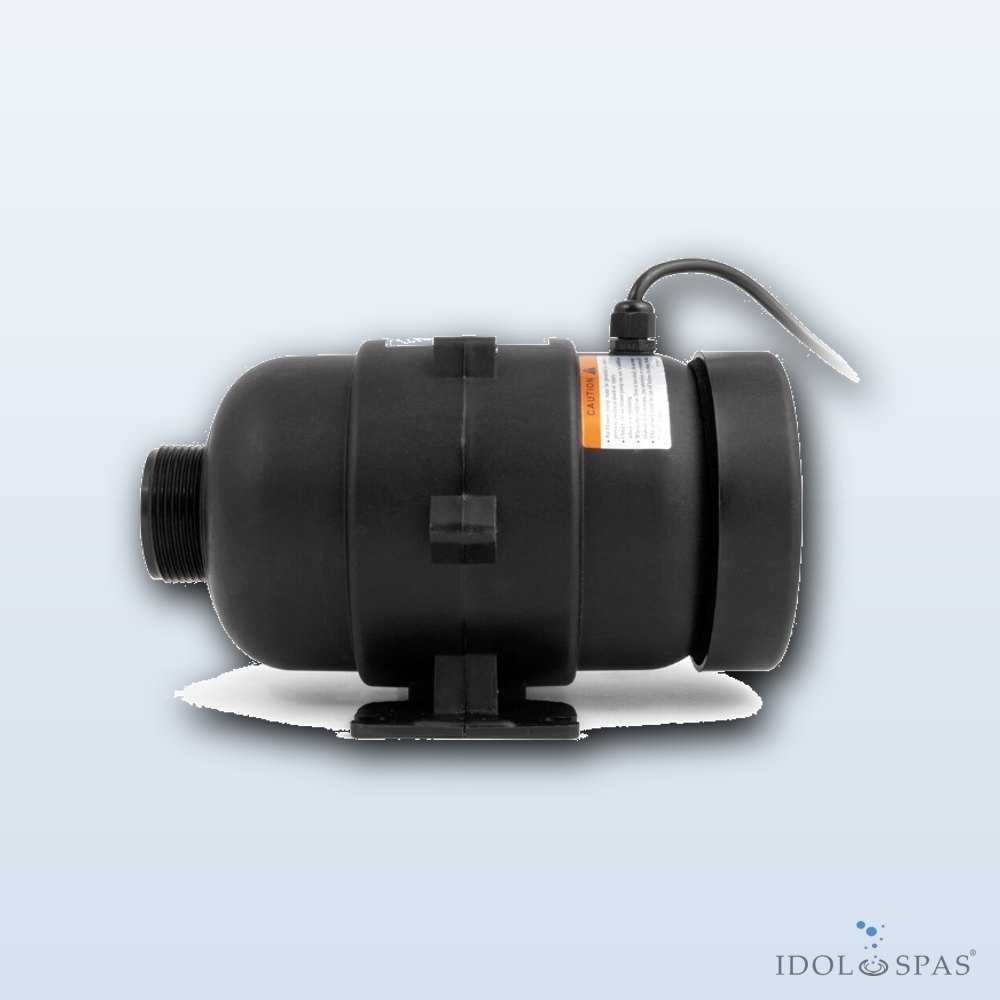

The heart of the compressor is the 400 W motor of the APW series, one of the most widespread blowers on the market. It offers stable air pressure and a long service life even under daily load in hot tubs. The preheating function increases the total output to 580 W.
Easy installation
The extra-long 2.8 m cable comfortably reaches from any point in the hot tub’s technical compartment to the control unit and is terminated with a standard 4-pin AMP connector. The package also includes 4 rubber silentblocks that isolate motor vibrations from the tub structure and reduce noise transmission.
Universal compatibility
With its standardised ∅61 mm thread and classic foot spacing, the compressor is an ideal replacement for most LX, Balboa or Gecko blowers. Installation is a matter of a few minutes without the need to modify the piping.
Technical parameters
- Product code: 01.05.01.0130
- Model: APW400-V2-G
- Motor output: 400 W
- Total output: 580 W
- Connector: 4-pin AMP
- Thread diameter: ∅61 mm
- Connection: 48 mm flange
- Cable length: 2.8 m

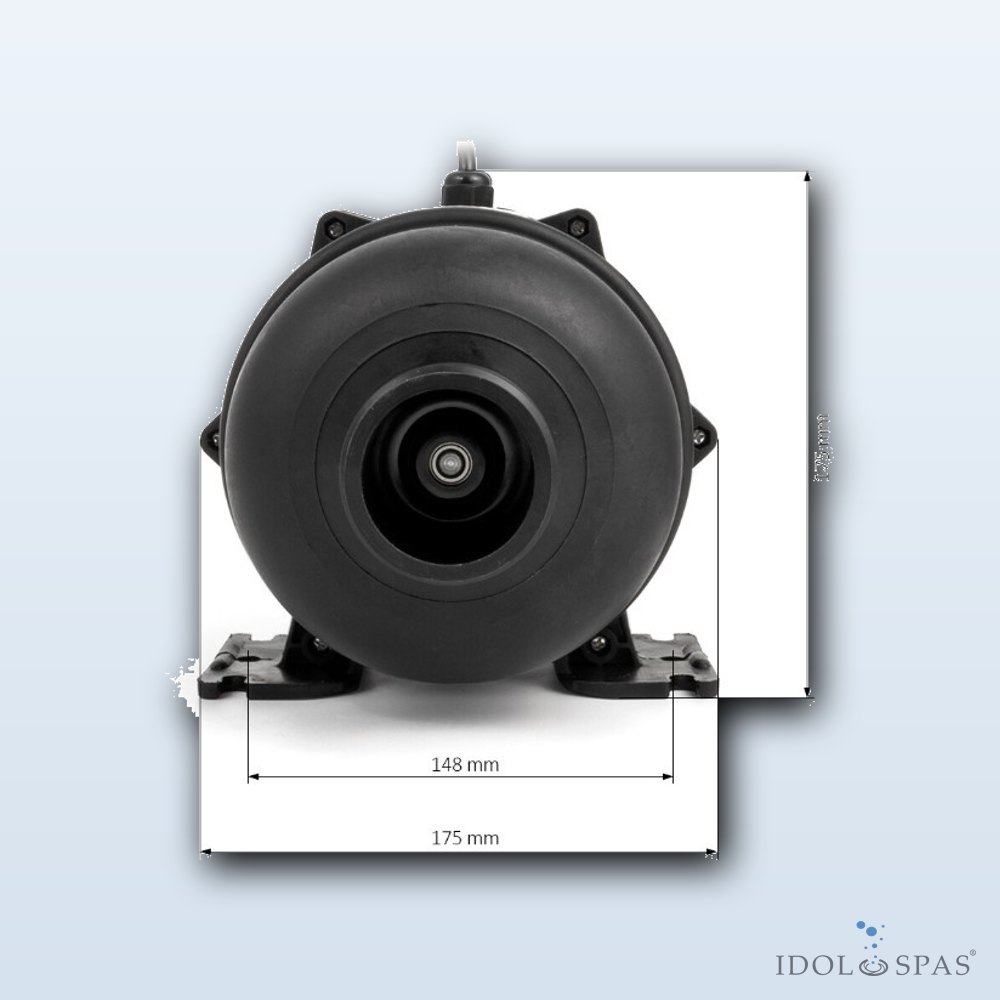

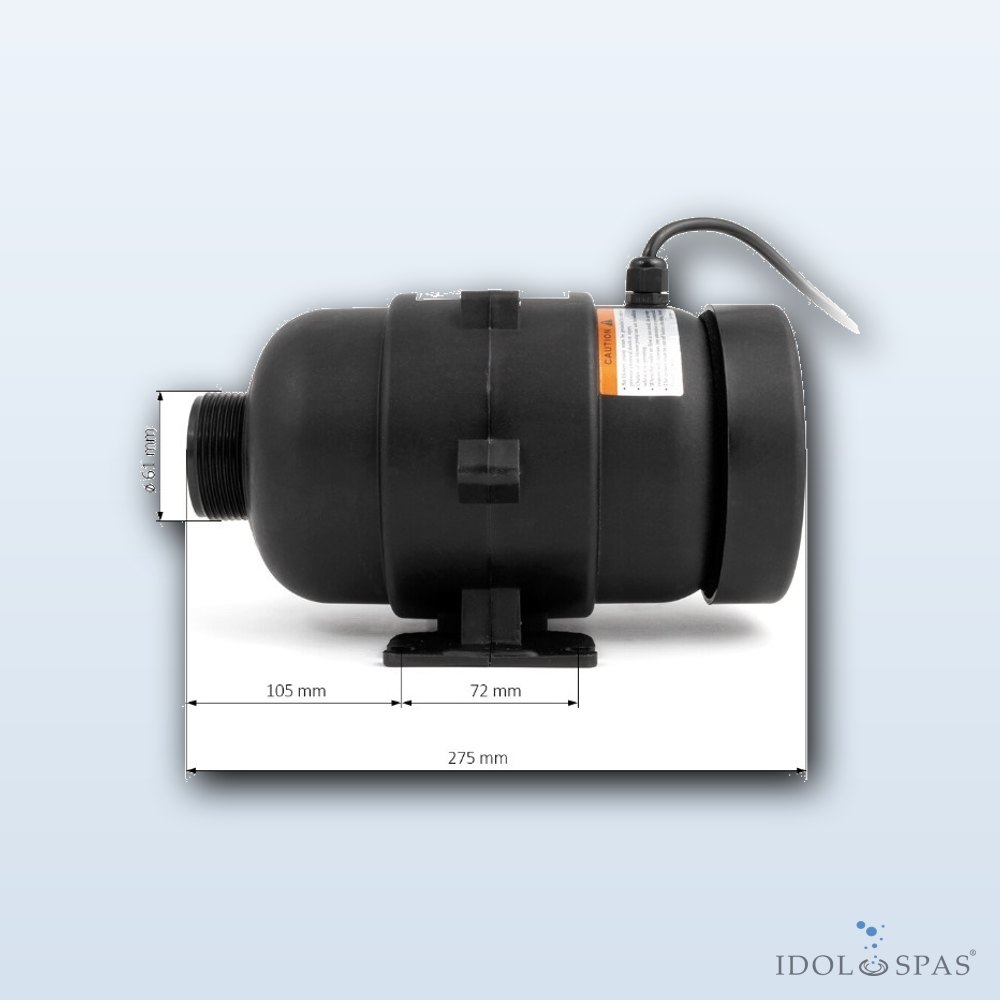

- Dimensions: 275 × 175 × 175 mm
- Accessories: 4× silentblock
