TOP 500 Filter Vessel with 6-Way Valve, flow rate 11 m³/h

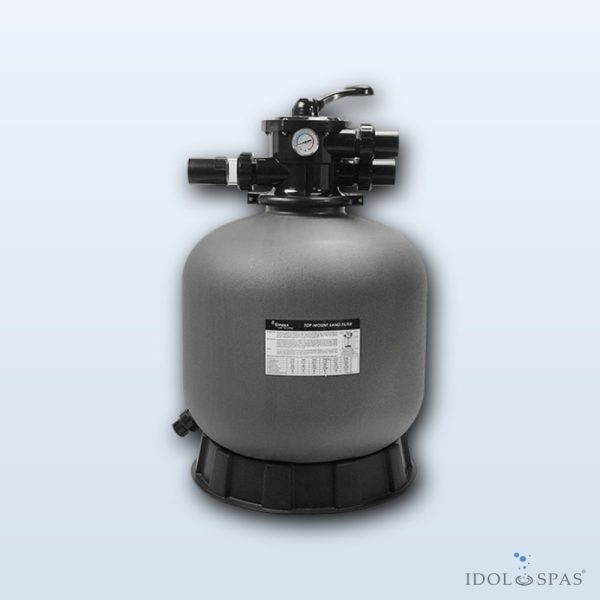

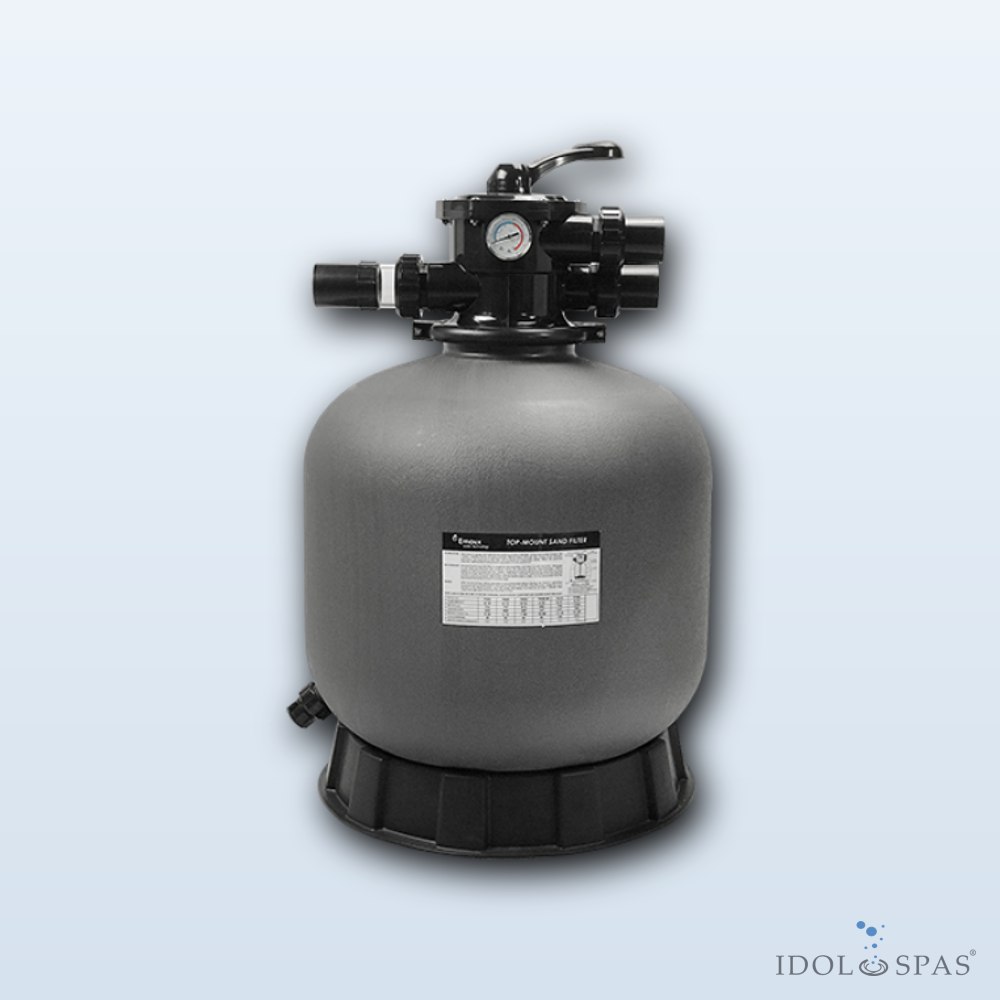

The TOP 500 filter vessel is made of highly durable polypropylene and is supplied fully assembled, including the top-mounted 6-way valve, internal connection, collector system, clamp with seal and pressure gauge. After connecting to the pump and filling the vessel with sand, the system is immediately operational.

The 6-way valve with a 1 1/2″ thread allows control of all operating positions (filtration, backwash, rinse, recirculation, drain, closed) from a single control element. The connection of the valve to the vessel is made by a band clamp with a seal for easy assembly and disassembly.

The filter medium is silica sand with a grain size of 0.4–0.8 mm weighing 85 kg, which captures impurities and ensures crystal-clear water. The TOP 500 vessel is suitable for pools with a volume of approximately 40–60 m³ and a pump flow rate of up to 11 m³/h.
