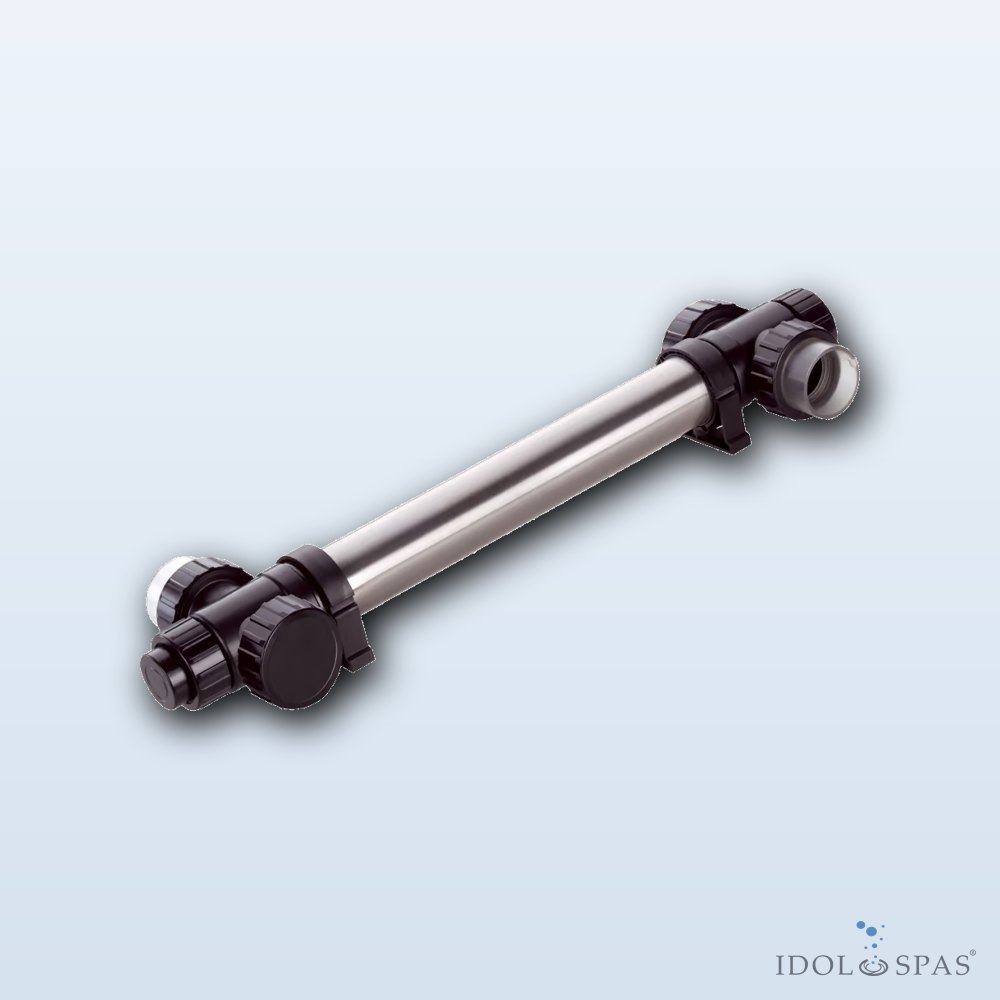

The UV-C FLEX INOX sterilizer 75W is primarily intended for private pools where neither chlorine nor salt electrolysis is used for disinfection.
Principle of UV disinfection
UV disinfection is among the increasingly used technologies for treating both drinking and pool water. It works on the principle of photochemical damage to RNA, DNA, proteins, enzymes and other biologically significant macromolecules. Its effectiveness depends on the radiation dose, the type of lamp and its arrangement relative to the water flow. Low-pressure monochromatic UV lamps emit radiation with a wavelength of 254 nm with germicidal effects – destroying algae, parasites, mold, viruses, yeasts and bacteria.
Combining UV with other technologies leads to high water quality, reduced operating costs and chemical savings. UV radiation alone does not ensure hygienic protection (risk of secondary contamination), which is why it is combined, for example, with chlorination.
Technical specifications
- Lamp power: 75 W
- Maximum flow rate: 25 m3/h
- Radiation intensity: 30 mJ/cm2
- Number and power of UV lamps: 1 x 75 W
- Connection DN: D63-50 mm
- Unit length: 850 mm
- The lamp is hermetically sealed in a housing
- Lamp service life: up to 9,000 h
