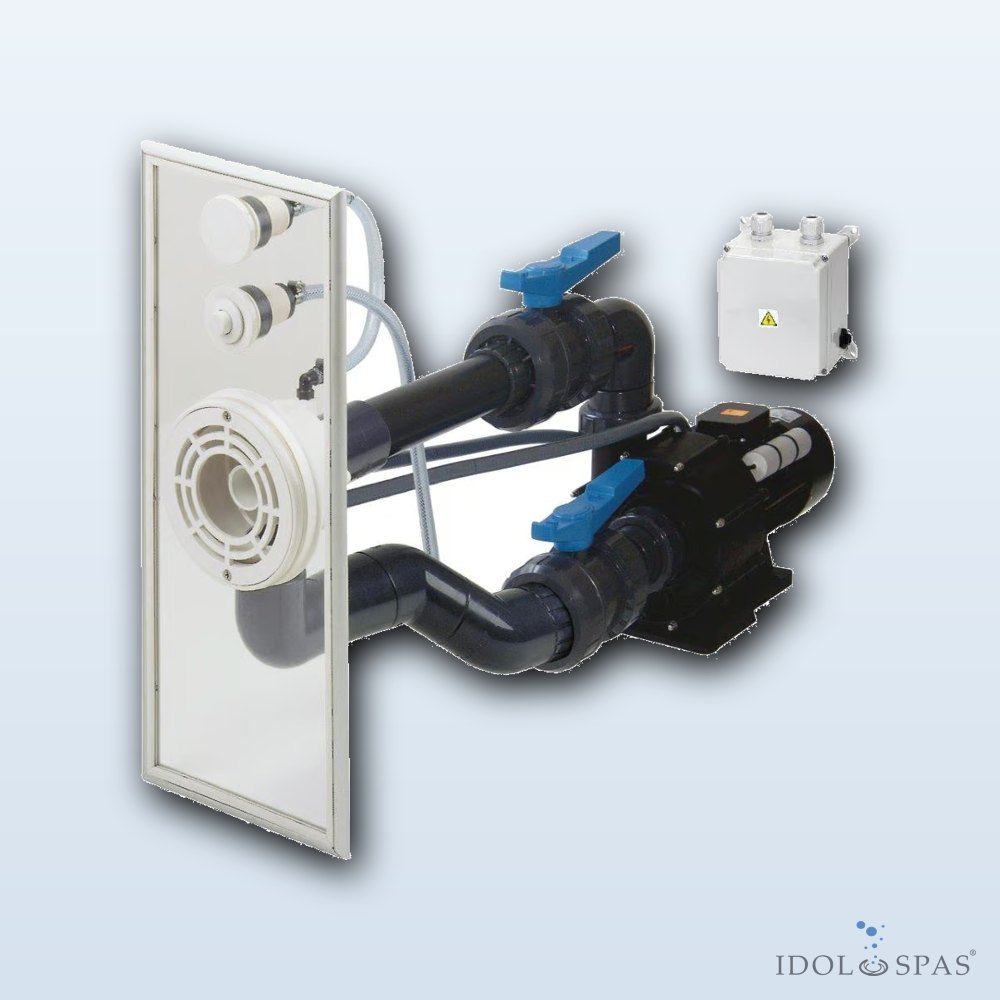

Complete VAG-JET counter-current unit for liner pools with a 66 m³/h pump, three-phase 400 V power supply and a power input of 2.2 kW.
The unit includes
- 40 mm diameter ball counter-current jet with water suction
- electro-pneumatic switching including motor protection
- air intake
- connection fittings – 2× ball valve, formed parts and pipe cut to exact dimensions for gluing
- 66 m³/h pump
Delivery in parts
- Pre-assembled set: head with jet, fittings for pneumatic switching and air intake, 2× ball valves and all piping.
- Second part: pump and electro-pneumatic control including pump protection.
