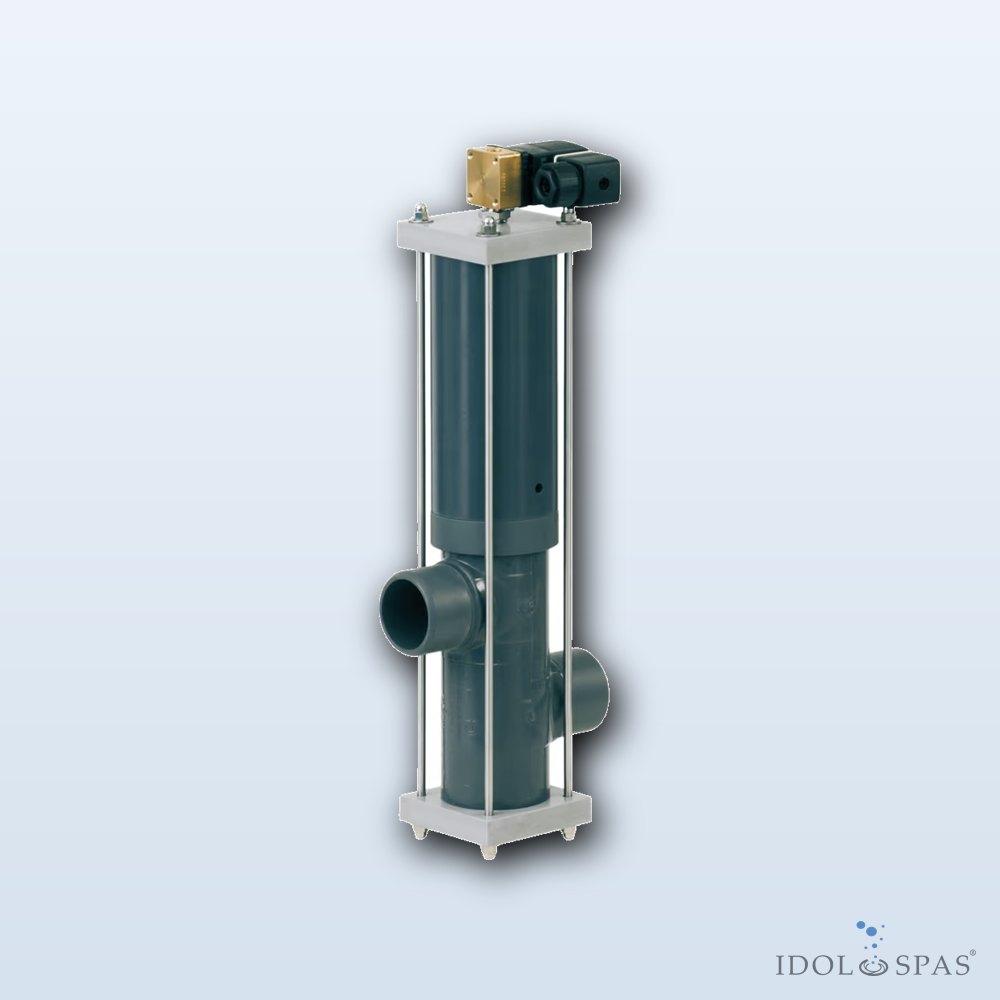

BESGO is a pneumatic 3-way valve designed to switch flow when using a single pump for multiple attractions or to regulate flow between the overflow and bottom suction.
A major advantage is maximum operational safety – the position can be changed even with the filtration pump running, although it is always preferable to switch the valve without water flow. In the event of a power failure, the valve automatically switches back to the „FILTRATION“ position, eliminating the risk of jamming in an intermediate position as well as unintentional draining of the pool, as occurs with mechanically damaged automatic 6-way valves.
Typical use
- Controlling water intake according to temperature via bottom suction or overflow gutter (in conjunction with the AS Control Plus unit)
- Connecting two attractions (e.g. a fountain and a counter-current unit) to a single pump
Technical parameters
- Design: 3-way
- Operation: pneumatic
- Connection size: Ø7
- Return closure: automatically by spring
