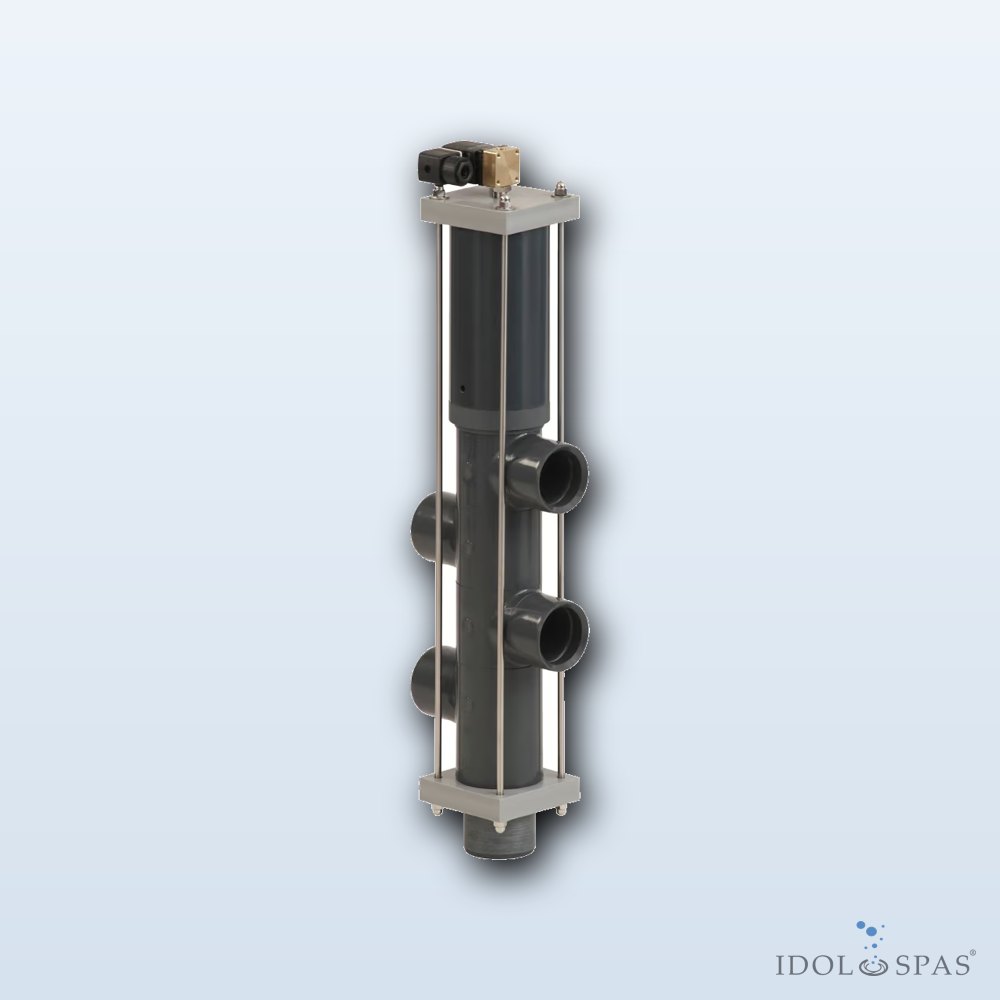

BESGO is a pneumatic 5-way valve designed for backwashing the filter tank. Switching (opening) is provided by water pressure from the mains or an air compressor, and the return closure occurs automatically by a spring.
The main advantage is maximum operational safety – the position can be changed even with the filtration pump running, although it is always preferable to perform switching without water flow. In the event of a power failure, the valve automatically switches back to the „FILTRATION“ position, so there is no risk of jamming in an intermediate position or unintentional draining of the pool, as with mechanically damaged automatic 6-way valves.
Technical parameters
- Design: 5-way
- Operation: pneumatic (water pressure or compressor)
- Connection size: Ø6, 230 mm
- Return closure: automatically by spring
