VArio F1SC Control Unit – Filtration + Lights + Dosing with own measurement

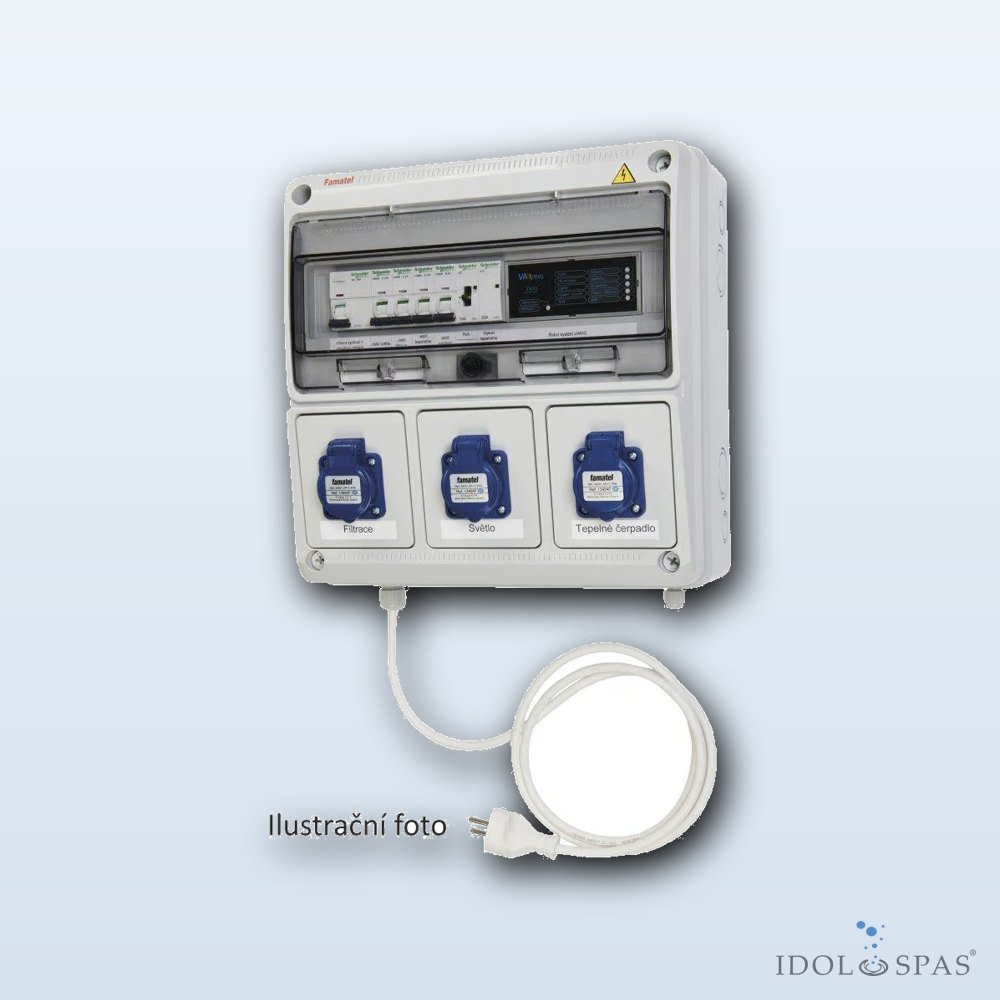

The control unit with a built-in DIN module of the VArio intelligent pool control system simplifies both installation and electrical wiring. The sockets on the body are labelled according to the connected appliance; connection is made via a flexible cable into the socket.

The VArio system allows you to control pool technology components via the internet, local Wi-Fi or a remote control. A WiFi module or an RC module must be purchased separately for the DIN module – the DIN module itself has no control interface. The recommended basic combination is the DIN module with a WiFi module for control via the internet as well as remote support and diagnostics. The RC module for direct local control has an IP 65 rating, is resistant to splashing water and rain, and can be placed next to the pool even during bathing.

Installation in three steps

• Mount the control unit on the wall.
• Connect the pool technology to the appropriate sockets.
• Connect the entire control unit to the socket using the supplied flexible cable.

Can be connected

• Single-phase filtration (230 V)
• Lighting
• Dosing device with own measurement (VA SALT SMART / VA DOS)

Note

• The maximum total power input of the VArio control unit with a flexible cable is 3.5 kW.
• For higher power inputs, order a tailor-made switchboard with a fixed connection.
• For installation in an existing setup, we recommend a consultation regarding communication with the dosing station.
