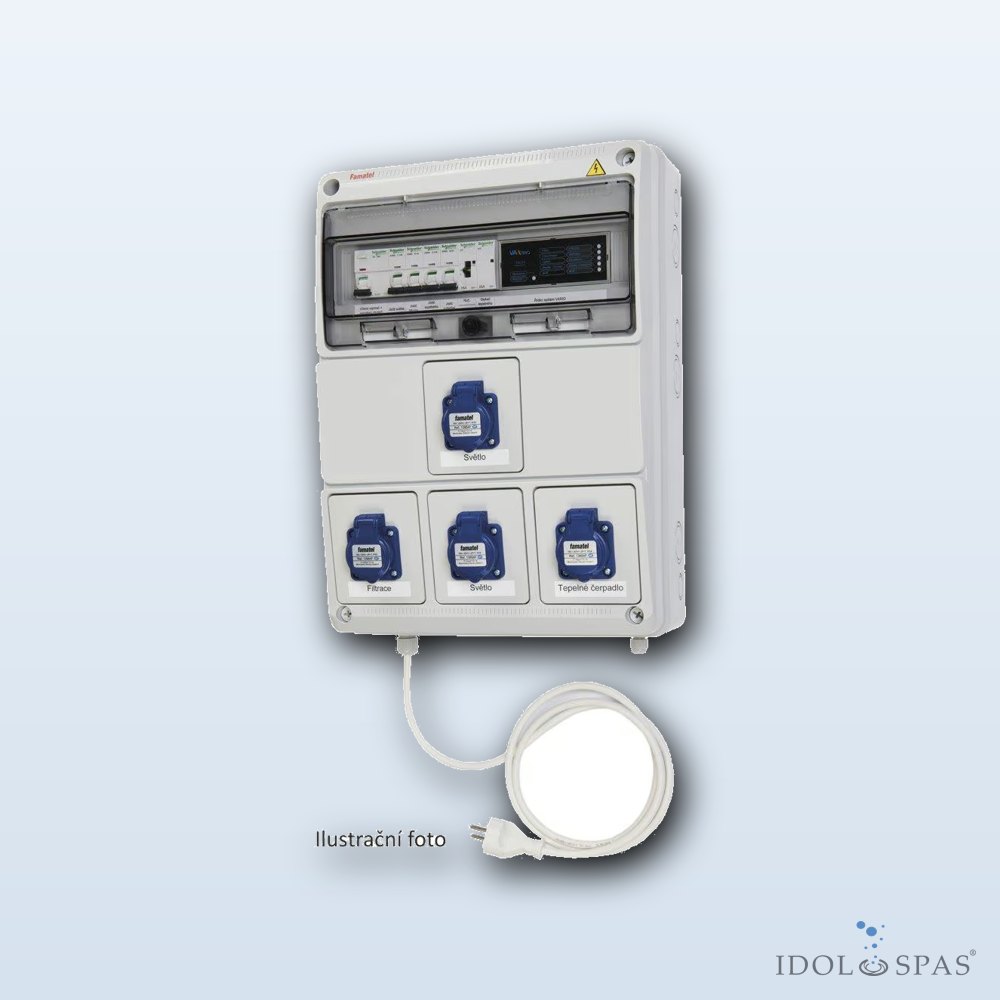

The control unit with a built-in DIN module of the VArio intelligent pool control system simplifies both installation and electrical wiring. The sockets on the body are labelled according to the technology they are intended for.
The VArio system allows you to control pool technology components via the internet, local Wi-Fi or a remote control. A WiFi module or an RC module must be purchased separately for the DIN module – the DIN module itself has no control interface. The recommended basic combination is the DIN module with a WiFi module for control via the internet as well as remote support and diagnostics. The RC module for direct local control has an IP 65 rating, is resistant to splashing water and rain, and can be placed next to the pool even during bathing.
Installation in three steps
- Mount the control unit on the wall.
- Connect the pool technology to the appropriate sockets.
- Connect the entire control unit to the mains.
Can be connected
- Single-phase filtration (230 V)
- Lighting
- 400 V counter-current
- Dosing device with own measurement (VA DOS / VA SALT SMART, communication cable required)
- Heat pump with a power input of up to 10 A / 2.2 kW
- Attractions with a power input of up to 10 A / 2.2 kW
Note
- VArio control units can also be ordered tailored to a specific installation – use the order form in the „Downloads“ tab for a price quote.
- For installation in an existing setup, we recommend a consultation regarding communication with the dosing station.
